CPC25

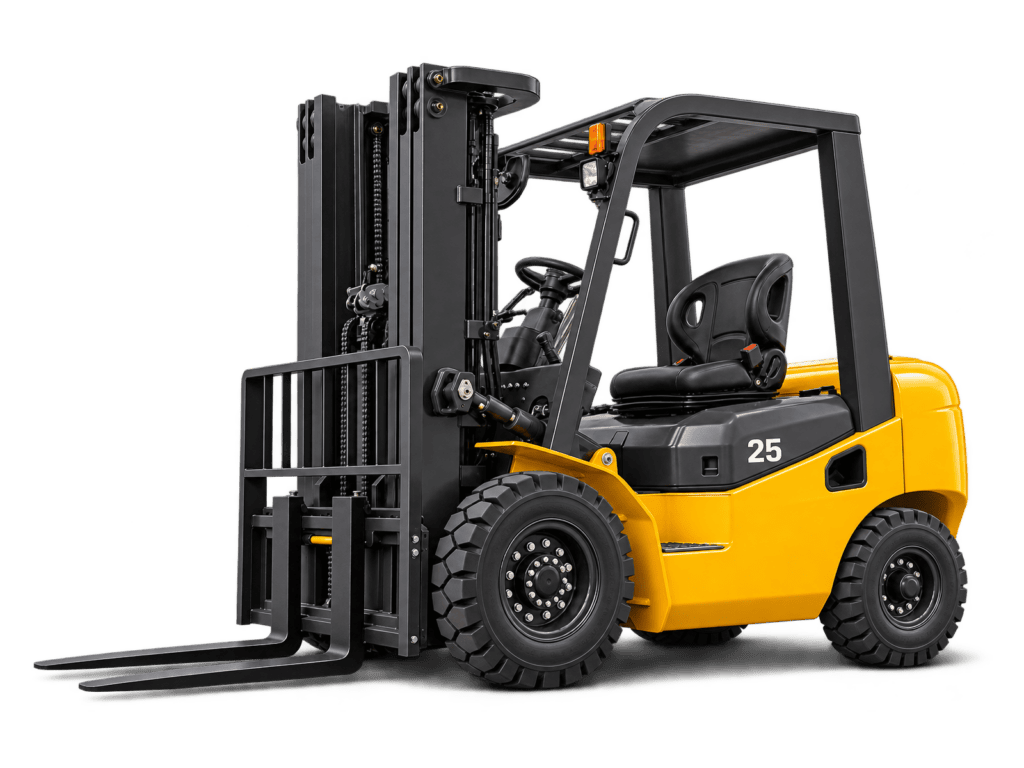

2.5 Ton Diesel Forklift
Compact 2.5-ton diesel forklift with 3,000 mm lift height, smooth hydraulic transmission, and stable performance for daily material handling.
2,500 kg
Rated Capacity
3,000 mm
Standard Lift Height
Xinchai / Optional
Engine
Request a Quote
Features
Rated capacity of 2,500 kg at a 500 mm load center for everyday material handling.
Standard 3-meter mast with a full-load lifting speed of up to 400 mm/s; custom lift heights are available on request.
Hydraulic transmission provides smooth power delivery and easier operation during frequent forward and reverse movements.
2,450 mm minimum turning radius, 110 mm ground clearance, and durable tires provide good maneuverability and stability for warehouse and yard operation.
Video
Specs & Compare
| Rated Capacity | 2,500 kg | Types of fuel | Diesel |
| Load Center | 500 mm | Engine Power | 39 kW |
| Standard Mast | 3,000 mm | Optional Lift Height | Up to 3–6 m |
| Fork Length | 1,070 mm / Optional | Transmission | Hydraulic / Mechanical |
| Travel Speed | 17 / 19 km/h | Lift Speed | 400 mm/s |
| Gradeability | 15% / 20% | Turning Radius | 2,450 mm |
| Overall Width | 1,160 mm | Overall Length | 3,605 mm |
| Machine Weight | 3,170 kg | Tire Type | Pneumatic / Optional Solid |
| Optional Functions | Side Shift / Fork Positioner | Color & Logo | Custom Available |
| Export Support | EXW / FOB / CIF | Documents | CE / Manual / Packing List |
