CPC80

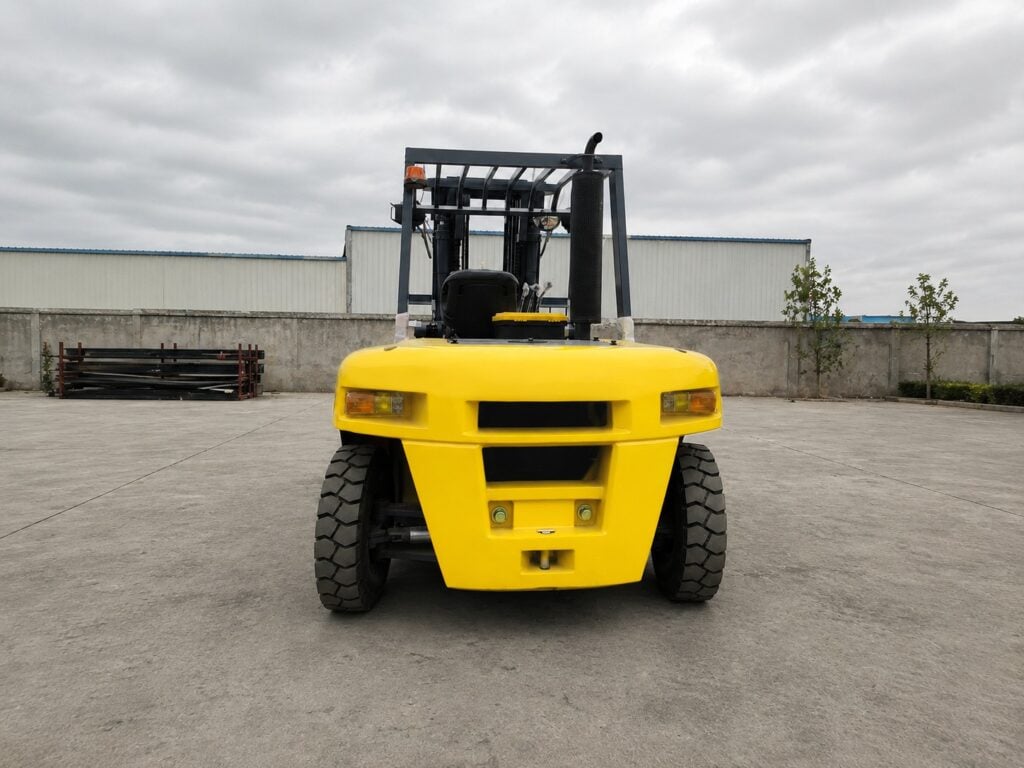

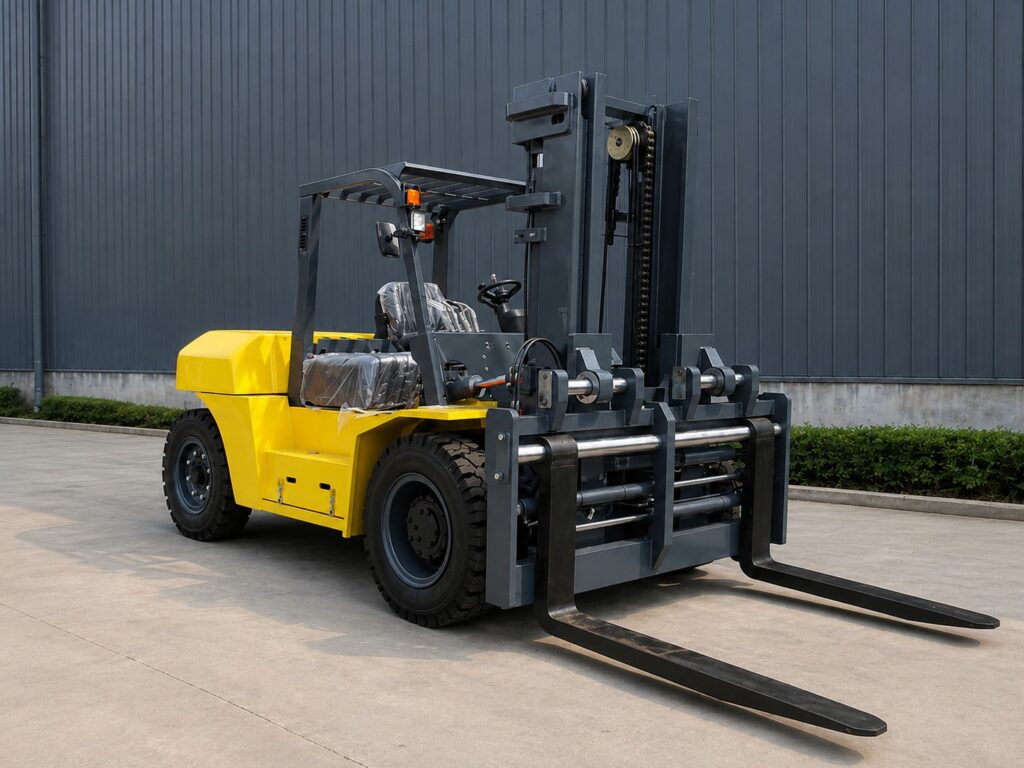

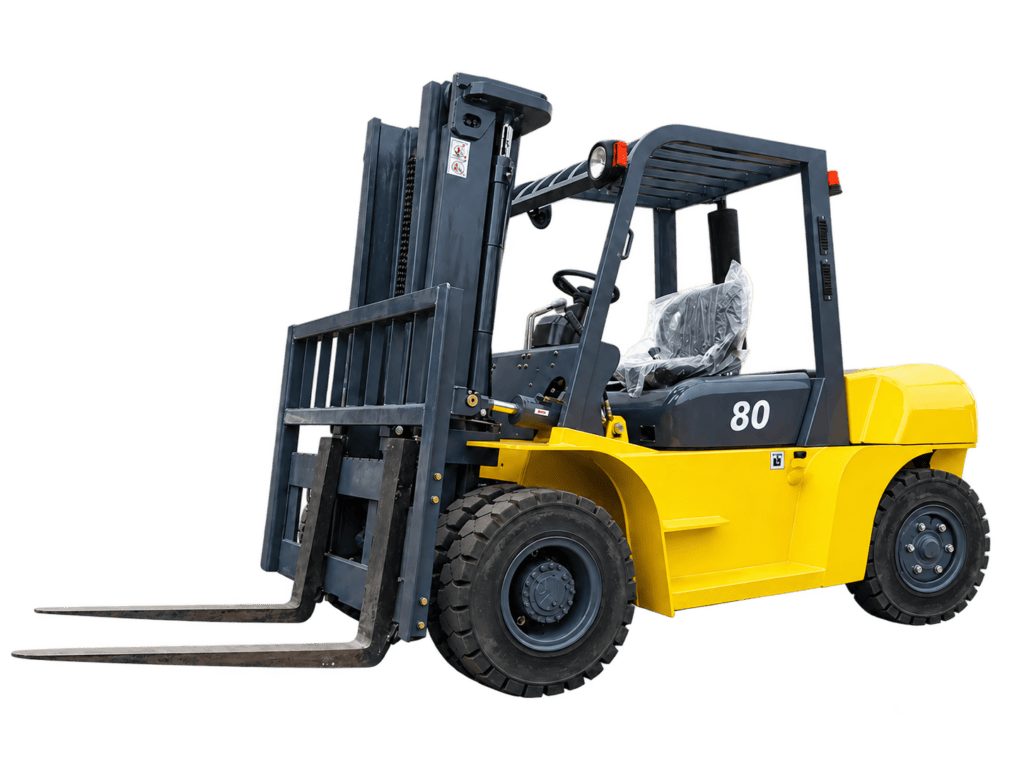

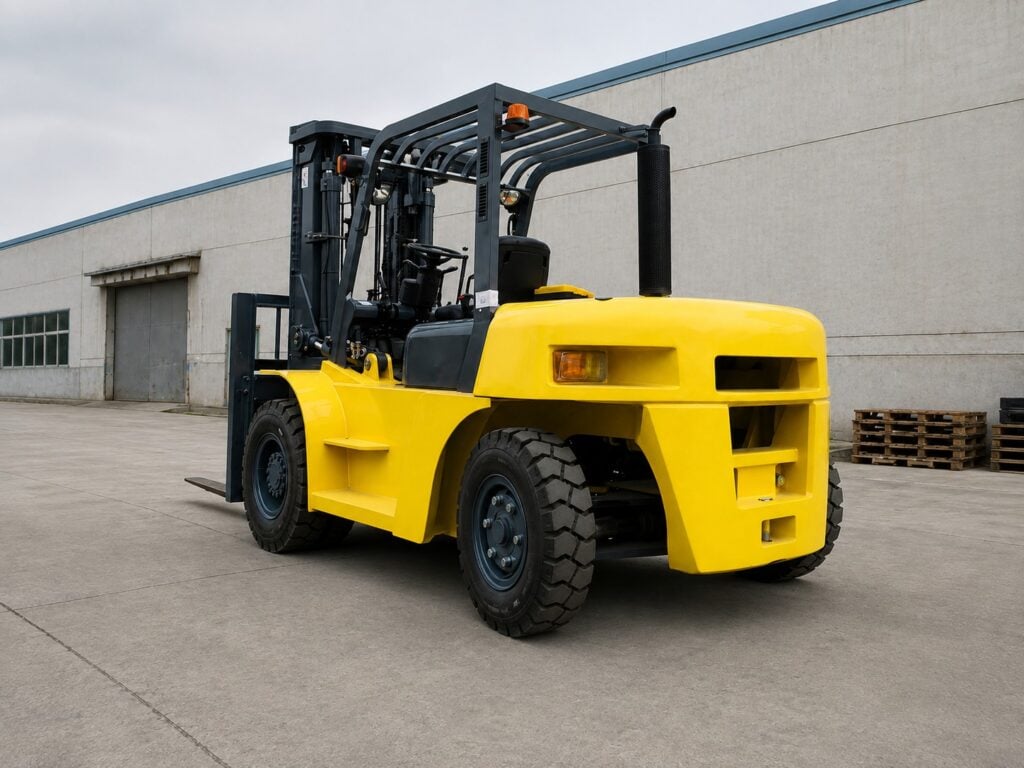

8 Ton Diesel Forklift
High-capacity 8-ton diesel forklift with 3,000 mm lift height, strong diesel power, and stable performance for intensive industrial handling.
3,500 kg
Rated Capacity
3,000 mm
Standard Lift Height
Xinchai / Optional
Engine
Request a Quote
Features
Rated capacity of 8,000 kg at a 600 mm load center for high-capacity material handling.
Standard 3-meter mast with a full-load lifting speed of up to 460 mm/s; custom lift heights are available on request.
Hydraulic transmission and an 85 kW Quanchai high-pressure common-rail engine provide reliable power under heavy loads.
3,580 mm minimum turning radius and 230 mm ground clearance deliver stable operation for ports, factories, logistics yards, and outdoor applications.
Video
Specs & Compare
| Rated Capacity | 8,000 kg | Types of fuel | Diesel |
| Load Center | 600 mm | Engine Power | 85 kW |
| Standard Mast | 3,000 mm | Optional Lift Height | Up to 3–6 m |
| Fork Length | 1,220 mm / Optional | Transmission | Hydraulic / Mechanical |
| Travel Speed | Up to 29 km/h | Lift Speed | 460 mm/s |
| Gradeability | Up to 30% | Turning Radius | 3,580 mm |
| Overall Width | 2,000 mm | Overall Length | 5,010 mm |
| Machine Weight | 9,650 kg | Tire Type | Pneumatic / Optional Solid |

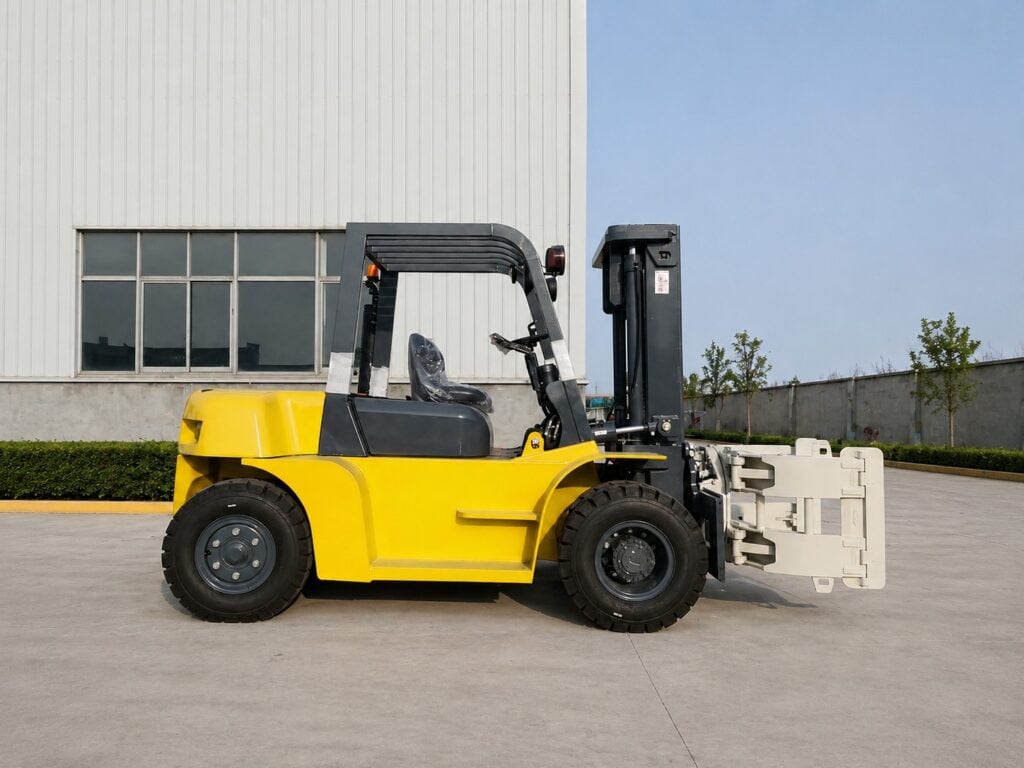

| Optional Functions | Side Shift / Fork Positioner | Color & Logo | Custom Available |
| Export Support | EXW / FOB / CIF | Documents | CE / Manual / Packing List |
