CPC50

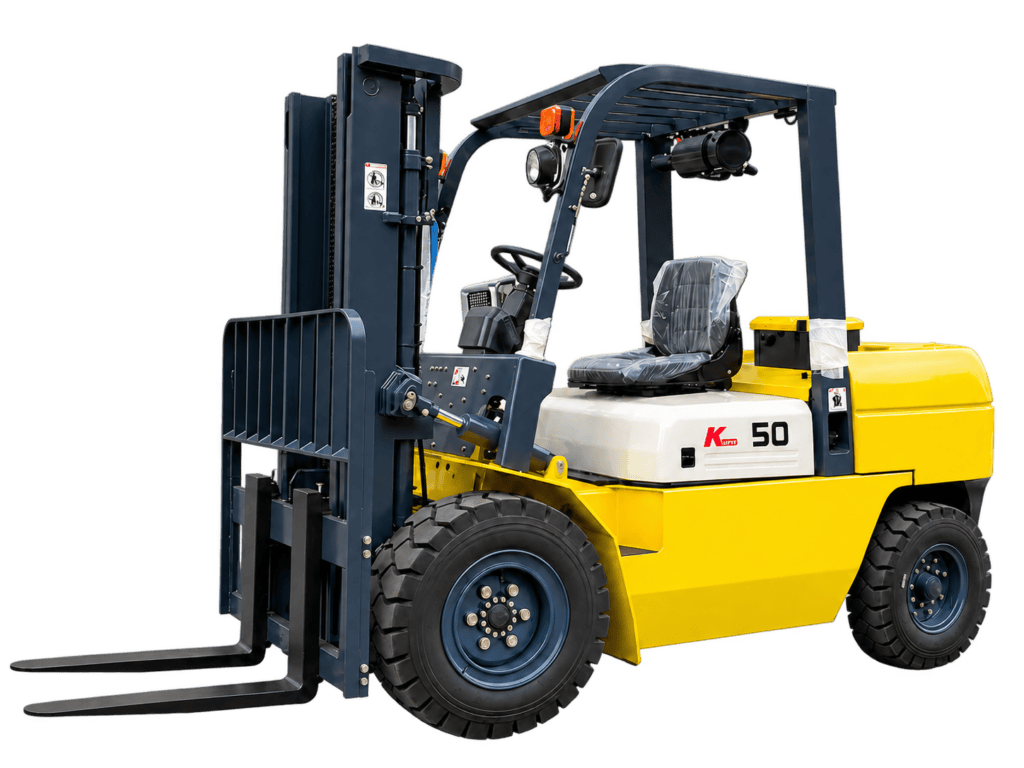

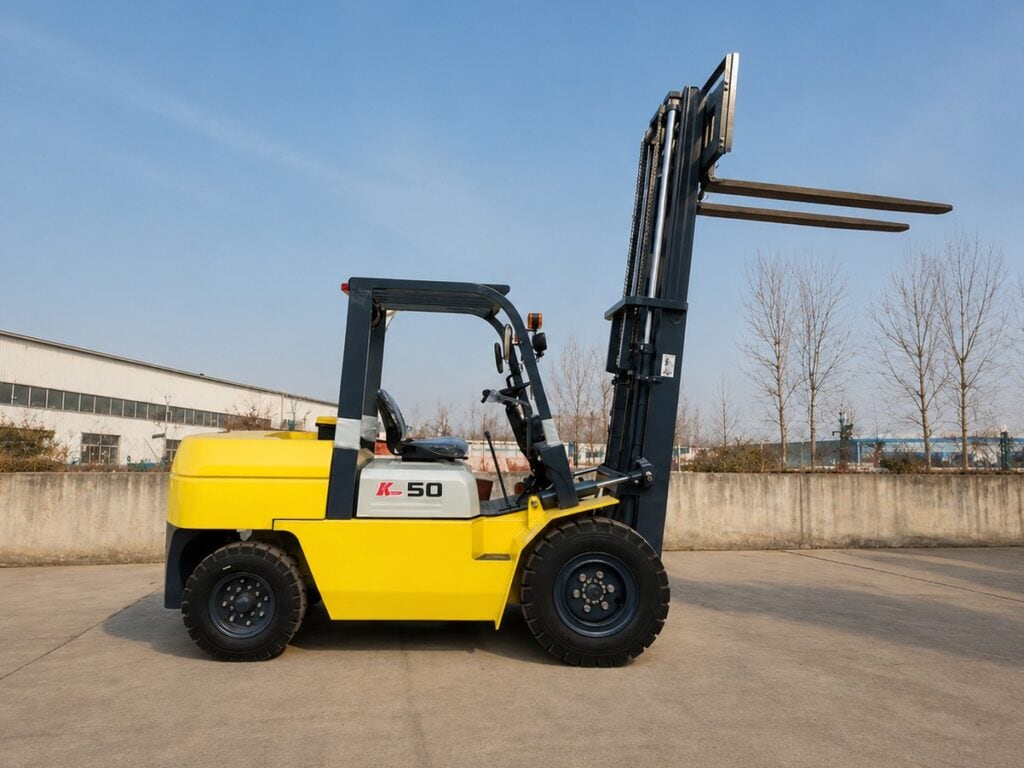

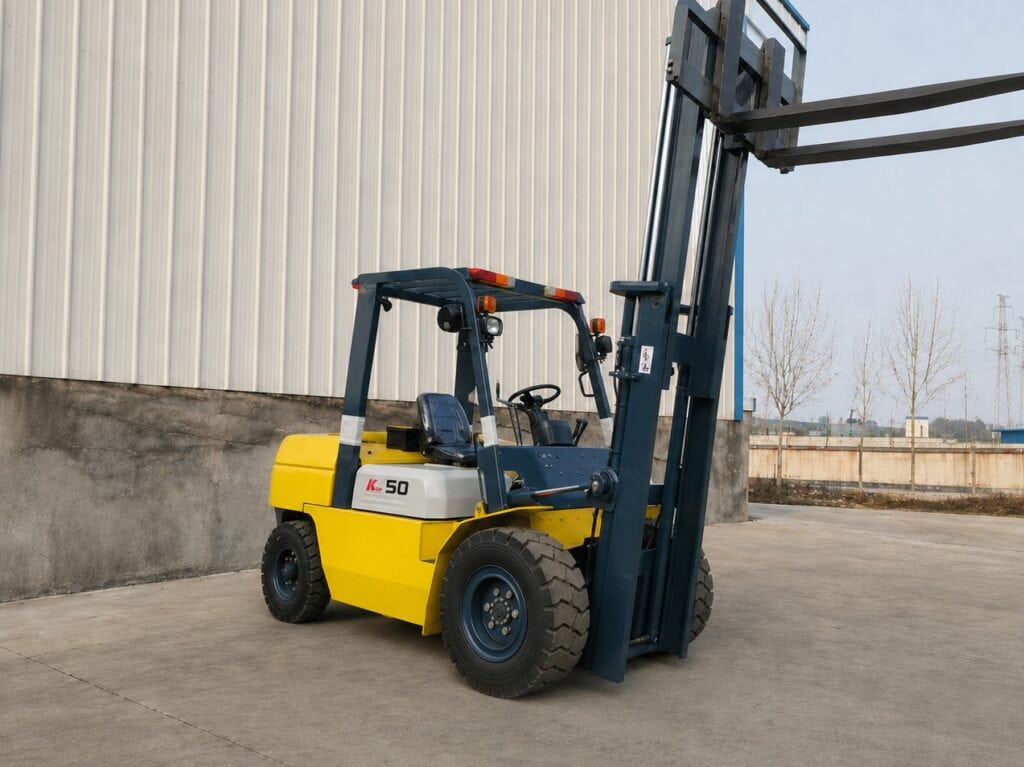

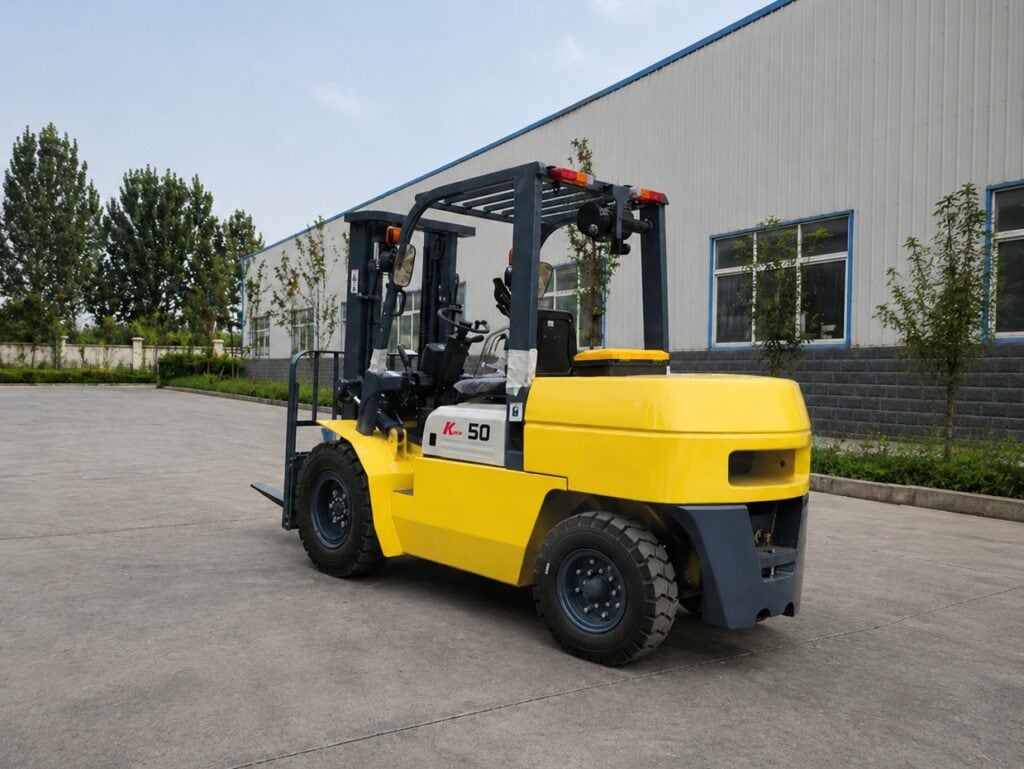

5 Ton Diesel Forklift
Heavy-duty 5-ton diesel forklift with 3,000 mm lift height, hydraulic transmission, and strong performance for demanding industrial operations.
5,000 kg
Rated Capacity
3,000 mm
Standard Lift Height
Xinchai / Optional
Engine
Request a Quote
Features
Rated capacity of 5,000 kg at a 600 mm load center for heavy-duty material handling.
Standard 3-meter mast with a full-load lifting speed of up to 470 mm/s; custom lift heights are available on request.
Hydraulic transmission and an 85 kW Quanchai high-pressure common-rail engine provide strong and smooth power delivery.
3,430 mm minimum turning radius and 230 mm ground clearance support stable operation in factories, yards, and demanding outdoor conditions.
Video
Specs & Compare
| Rated Capacity | 5,000 kg | Types of fuel | Diesel |
| Load Center | 500 / 600 mm | Engine Power | 60–85 kW |
| Standard Mast | 3,000 mm | Optional Lift Height | Up to 3–6 m |
| Fork Length | 1,220 mm / Optional | Transmission | Hydraulic / Mechanical |
| Travel Speed | Up to 24 km/h | Lift Speed | 375–470 mm/s |
| Gradeability | 15% / 25% | Turning Radius | 3,000–3,430 mm |
| Overall Width | 1,400–1,995 mm | Overall Length | 4,350–4,760 mm |
| Machine Weight | 6,800–8,200 kg | Tire Type | Pneumatic / Optional Solid |
| Optional Functions | Side Shift / Fork Positioner | Color & Logo | Custom Available |
| Export Support | EXW / FOB / CIF | Documents | CE / Manual / Packing List |
