CPC40

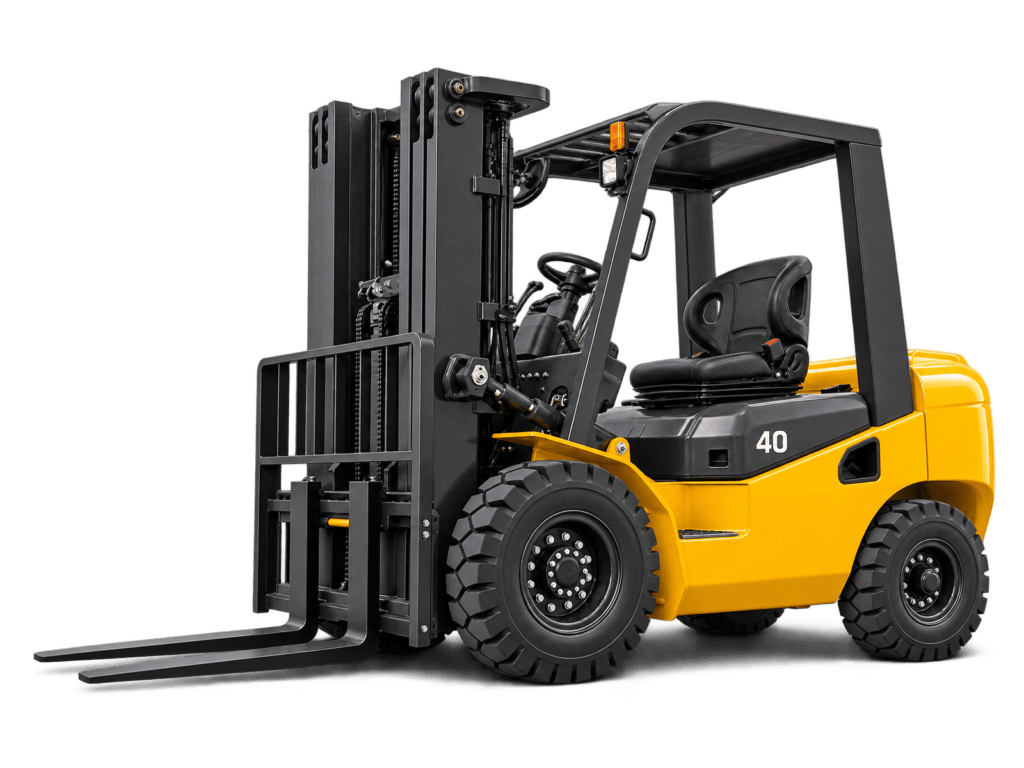

4 Ton Diesel Forklift
Rated capacity of 4,000 kg for medium-heavy industrial material handling.
4,000 kg
Rated Capacity
3,000 mm
Standard Lift Height
Xinchai / Optional
Engine
Request a Quote
Features
Rated capacity of 4,000 kg for medium-heavy industrial material handling.
Standard 2-stage, 3-meter mast, with customized mast and lift-height options available for specific applications.
Reliable diesel engine options provide strong power and practical maintenance for daily operation.
Heavy-duty structure is suitable for factories, warehouses, logistics yards, construction sites, and outdoor loading work.
Video
Specs & Compare
| Rated Capacity | 4,000 kg | Types of fuel | Diesel |
| Load Center | 500 mm | Engine Power | 48 kW |
| Standard Mast | 3,000 mm | Optional Lift Height | Up to 3–6 m |
| Fork Length | 1,220 mm / Optional | Transmission | Hydraulic / Mechanical |
| Travel Speed | Up to 22 km/h | Lift Speed | Up to 350 mm/s |
| Gradeability | Up to 20% | Turning Radius | 2,800 mm |
| Overall Width | 1,380 mm | Overall Length | 4,100 mm |
| Machine Weight | 5,300 kg | Tire Type | Pneumatic / Optional Solid |
| Optional Functions | Side Shift / Fork Positioner | Color & Logo | Custom Available |
| Export Support | EXW / FOB / CIF | Documents | CE / Manual / Packing List |
