CPC35

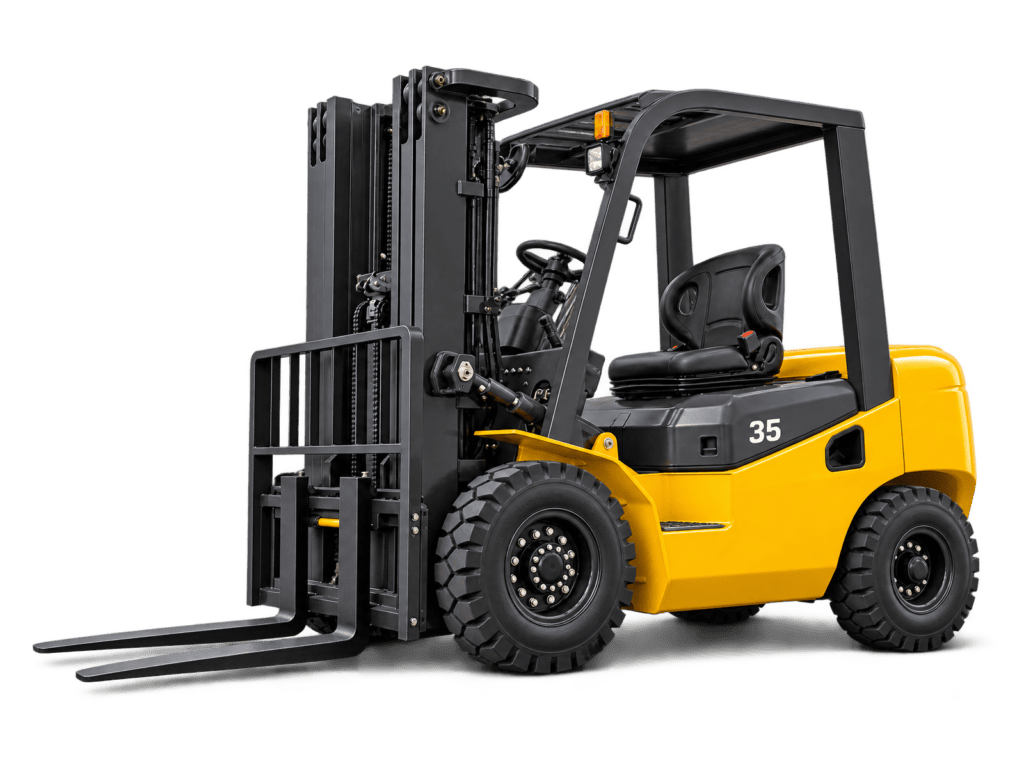

3.5 Ton Diesel Forklift
Powerful 3.5-ton diesel forklift with 3,000 mm standard lift height and flexible mast options for demanding warehouse and outdoor handling.
3,500 kg
Rated Capacity
3,000 mm
Standard Lift Height
Xinchai / Optional
Engine
Request a Quote
Features
Rated capacity of 3,500 kg for heavier pallets, building materials, machinery, and general industrial loads.
Standard 3-meter mast, with 4.5-meter Triplex mast and other lift-height configurations available on request.
Diesel engine options provide dependable power for frequent loading, stacking, and outdoor operation.
Robust design delivers stable handling for warehouses, factories, construction yards, and container-related applications.
Video
Specs & Compare
| Rated Capacity | 3,500 kg | Types of fuel | Diesel |
| Load Center | 500 mm | Engine Power | 39–48 kW |
| Standard Mast | 3,000 mm | Optional Lift Height | Up to 3–6 m |
| Fork Length | 1,220 mm / Optional | Transmission | Hydraulic / Mechanical |
| Travel Speed | Up to 20 km/h | Lift Speed | Up to 400 mm/s |
| Gradeability | 15% / 20% | Turning Radius | 2,700 mm |
| Overall Width | 1,225 mm | Overall Length | 3,950 mm |
| Machine Weight | 4,700 kg | Tire Type | Pneumatic / Optional Solid |
| Optional Functions | Side Shift / Fork Positioner | Color & Logo | Custom Available |
| Export Support | EXW / FOB / CIF | Documents | CE / Manual / Packing List |
